S11 Series 10kV Three Phase Oil Immersed Power Transformer
Category:
Keywords:
WhatsApp:
Email:
Product Description
- 产品描述
-
Product Overview
The S11 series oil-immersed transformers, purpose-built to fulfill the demands of energy efficiency, silent operation, and robust reliability. Tailored for versatile applications, these transformers thrive in urban-rural power networks, industrial parks, and a spectrum of complex power environments where consistent performance is non-negotiable.

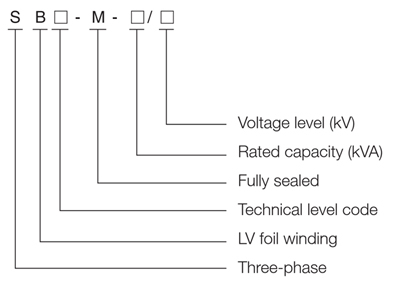

Incorporating cutting-edge technologies and premium-grade materials, the S11 offers outstanding electrical performance. Each unit is meticulously engineered to comply with the rigorous standards of modern power grids, integrating strict energy-saving and eco-friendly protocols. From their optimized core designs to advanced insulation systems, these transformers minimize energy dissipation while ensuring stable operation, making them a cornerstone for critical infrastructure projects that prioritize both performance and sustainability.Model Definition
Features
● Voltage level: 10～35/0.4kV.
● Capacity: 30～3150kVA.
● Low Losses: The core is constructed from high-quality cold-rolled silicon steel laminations, significantly reducing no-load losses and magnetizing current.
● Quiet Operation: The transformer core is tightly bound to ensure structural integrity, minimizing operational noise.
● Fully Sealed Design: A hermetic enclosure extends service life and eliminates maintenance needs. The corrugated tank design accommodates oil expansion through elastic deformation, isolating the oil from ambient air.
● High Short-Circuit Withstand: Advanced manufacturing processes ensure the transformer can endure short-circuit currents without thermal or mechanical damage.
● Environmental & Safety Compliance: The tank and oil reservoir undergo pressure testing to prevent leaks under normal operation.
● Efficient Cooling: The transformer oil’s superior thermal conductivity absorbs and transfers heat via natural convection or forced circulation, maintaining optimal operating temperatures.
Range of application
Suitable for urban and rural power grid construction and renovation projects, as well as other distribution engineering projects, such as high-rise buildings, densely populated residential areas, important government agencies, airports, subways, stations, ports, petrochemicals, metallurgical mining, power plants, and places that require fire and explosion prevention.
Technical specifications
Rated capacity (kVA)
Rated voltage
Vector group
No-load loss (W)
Load loss (W)
No-load current (%)
Impedance voltage (%)
HV (kV)
Tapping range (%)
LV (kV)
11#
13#
20#
22#
11/13#
20#
22#
11#
13#
20#
22#
30
6 6.3 6.6 10 10.5 11
±5 or ±2×2.5
0.4
Dyn11 or Yyn0
100
80
70
65
630/600
505/480
455/430
0.3
0.3
0.24
0.23
4
50
130
100
90
80
910/870
730/695
655/625
0.24
0.23
0.24
0.23
80
180
130
115
105
1310/1250
1050/1000
945/900
0.22
0.18
0.21
0.20
100
200
150
135
120
1580/1500
1265/1200
1140/1080
0.21
0.16
0.21
0.20
125
240
170
150
135
1890/1800
1510/1440
1360/1295
0.2
0.15
0.19
0.18
160
280
200
180
160
2310/2200
1850/1760
1665/1585
0.19
0.14
0.18
0.17
200
340
240
215
190
2730/2600
2185/2080
1970/1870
0.18
0.12
017
0.16
250
400
290
260
230
3200/3050
2560/2440
2300/2195
0.16
0.12
0.14
0.13
315
480
340
305
270
3830/3650
3065/2920
2760/2630
0.16
0.11
0.13
0.12
400
570
410
370
330
4520/4300
3615/3440
3250/3095
0.16
0.11
0.13
0.12
500
680
480
430
385
5410/5150
4330/4120
3900/3710
0.16
0.1
0.12
0.11
630
810
570
510
460
6200
4960
4460
0.15
0.09
0.12
0.11
4.5
800
980
700
630
560
7500
6000
5400
0.15
0.09
0.1
0.1
1000
1150
830
745
665
10300
8240
7415
0.14
0.09
0.1
0.09
1250
1360
970
870
780
12000
9600
8640
0.13
0.08
0.1
0.09
1600
1640
1170
1050
940
14500
11600
10440
0.12
0.07
0.09
0.08
2000
1940
1360
1225
1085
18300
14640
13180
0.11
0.09
0.09
0.08
5.5
2500
2290
1600
1440
1280
21200
14840
13360
0.11
0.08
0.09
0.08
3150
2750
2180
24100
0.11
0.08
6
Note:
1. The load loss with two values in the table, the value on the left is applicable to the Dyn11 vector group, and the value on the right is applicable to the Yyn0 vector group.
2. The above data is subject to change due to technical improvement.
