S13 Series 10kV Oil Immersed Power Transformer for Outdoor Using
Category:
Keywords:
WhatsApp:
Email:
Product Description
- 产品描述
-
Product Overview

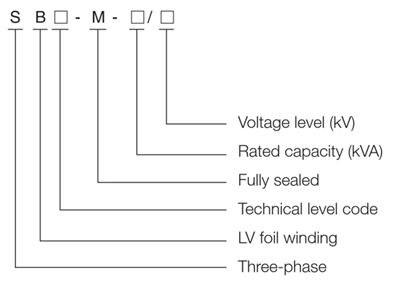

The S13 series three-phase oil-immersed transformers are high-efficiency energy-saving power transformers, designed and manufactured with a fully sealed corrugated tank structure. Temperature and volume changes of transformer oil caused by load fluctuations and ambient temperature variations are fully compensated by the corrugated tank, featuring a sleek appearance, compact footprint, and remarkable economic benefits. Compared with GB/T 6451 standards, S13-M transformers achieve an average 45% reduction in no-load losses, 35% reduction in load losses, and 30% decrease in operating costs, making it a sustainable choice for critical infrastructure projects requiring high efficiency and long-term durability.odel Definition
Features
● Voltage level: 10～35/0.4kV.
● Capacity: 30～3150kVA.
● Extended Lifespan & Maintenance-Free Operation:
Fully sealed design with bolted or welded tank cover-to-frame connections eliminates oil-air contact, preventing moisture ingress and significantly reducing insulation aging. This extends service life while enabling maintenance-free operation.
● Compact Design & Low Noise:
Utilizes advanced materials and manufacturing techniques to minimize operational noise. The oil conservator-free structure reduces overall height compared to conventional units. Lifetime oil retention eliminates the need for mid-life oil changes, enhancing in-service safety and reliability.
● Space-Efficient Corrugated Tank:
The S11 series features corrugated tank walls that provide natural cooling through thermal expansion and contraction. This design optimizes footprint while maintaining aesthetic appeal.
● Coreless Maintenance & Oil Purity:
Vacuum-filtered oil injection during assembly removes all moisture, ensuring long-term dielectric integrity. Hermetic sealing prevents oxygen ingress, eliminating oxidation risks and preserving insulation performance throughout the transformer’s lifecycle.
Range of application
Widely applicable to high-rise buildings, commercial centers, subways, airports, railway stations, industrial and mining enterprises, drilling platforms, and oil production platforms. Specifically suitable for locations with strict fire-prevention requirements (such as flammable/explosive zones) and harsh environments. Also ideal for power supply and lighting in residential areas, commercial streets, industrial sites, and rural communities.
Technical specifications
Rated capacity (kVA)
Rated voltage
Vector group
No-load loss (W)
Load loss (W)
No-load current (%)
Impedance voltage (%)
HV (kV)
Tapping range (%)
LV (kV)
11#
13#
20#
22#
11/13#
20#
22#
11#
13#
20#
22#
30
6 6.3 6.6 10 10.5 11
±5 or ±2×2.5
0.4
Dyn11 or Yyn0
100
80
70
65
630/600
505/480
455/430
0.3
0.3
0.24
0.23
4
50
130
100
90
80
910/870
730/695
655/625
0.24
0.23
0.24
0.23
80
180
130
115
105
1310/1250
1050/1000
945/900
0.22
0.18
0.21
0.20
100
200
150
135
120
1580/1500
1265/1200
1140/1080
0.21
0.16
0.21
0.20
125
240
170
150
135
1890/1800
1510/1440
1360/1295
0.2
0.15
0.19
0.18
160
280
200
180
160
2310/2200
1850/1760
1665/1585
0.19
0.14
0.18
0.17
200
340
240
215
190
2730/2600
2185/2080
1970/1870
0.18
0.12
017
0.16
250
400
290
260
230
3200/3050
2560/2440
2300/2195
0.16
0.12
0.14
0.13
315
480
340
305
270
3830/3650
3065/2920
2760/2630
0.16
0.11
0.13
0.12
400
570
410
370
330
4520/4300
3615/3440
3250/3095
0.16
0.11
0.13
0.12
500
680
480
430
385
5410/5150
4330/4120
3900/3710
0.16
0.1
0.12
0.11
630
810
570
510
460
6200
4960
4460
0.15
0.09
0.12
0.11
4.5
800
980
700
630
560
7500
6000
5400
0.15
0.09
0.1
0.1
1000
1150
830
745
665
10300
8240
7415
0.14
0.09
0.1
0.09
1250
1360
970
870
780
12000
9600
8640
0.13
0.08
0.1
0.09
1600
1640
1170
1050
940
14500
11600
10440
0.12
0.07
0.09
0.08
2000
1940
1360
1225
1085
18300
14640
13180
0.11
0.09
0.09
0.08
5.5
2500
2290
1600
1440
1280
21200
14840
13360
0.11
0.08
0.09
0.08
3150
2750
2180
24100
0.11
0.08
6
Note:
1. The load loss with two values in the table, the value on the left is applicable to the Dyn11 vector group, and the value on the right is applicable to the Yyn0 vector group.
2. The above data is subject to change due to technical improvement.
