S20 SeriesHigh-Efficiency Oil Immersed Power Transformer 10kV
Category:
Keywords:
WhatsApp:
Email:
Product Description
- 产品描述
-
Product Overview
S20 Series three-phase oil-Immersed transformers as the next-generation energy-efficient power equipment, it achieves a breakthrough in energy efficiency with 30% lower no-load losses and 25% reduced load losses compared to the S13 series. Featuring a core constructed from high-permeability grain-oriented silicon steel laminations with stepped-lap joints, the design minimizes hysteresis and eddy current losses, resulting in a 40% reduction in no-load current.

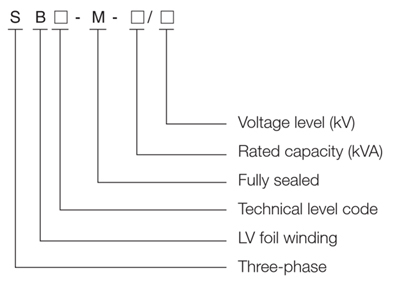

The fully sealed corrugated tank design automatically compensates for oil volume fluctuations caused by temperature changes through elastic deformation of the corrugated sheets. This hermetic structure eliminates the need for an oil conservator, enabling maintenance-free operation and extending service life to over 35 yearsModel Definition
Features
● Voltage level: 10～35/0.4kV.
● Capacity: 30～3150kVA.
● High-Efficiency Energy Optimization: Leveraging next-generation energy-saving technologies, this design significantly reduces no-load and load losses compared to traditional models, meeting industry-leading efficiency standards. It substantially cuts long-term operational energy costs, making it ideal for high-load power applications with strict energy consumption control requirements.
● Low-Magnetic Loss Core Technology: Utilizes high-permeability grain-oriented silicon steel laminations with stepped-lap joint technology to minimize hysteresis loss and no-load current, reducing core heating and excitation energy loss.
● Fully Sealed Maintenance-Free Design: The corrugated tank automatically compensates for oil volume fluctuations through elastic deformation, isolating oil from air contact. This eliminates the need for an oil conservator or regular oil changes.
● Low-Noise Eco-Friendly Operation: Incorporates noise-dampening lamination technology and low-noise fans, ensuring minimal no-load and load noise levels that comply with requirements for noise-sensitive areas like urban residential zones and hospitals.
● Compact Space-Saving Structure: Features a minimized cabinet volume and footprint, suitable for space-constrained environments such as high-rise building switchrooms and subway traction substations.
● Full-Process Sealing Assurance: The tank undergoes leak testing to ensure zero leakage risk throughout the product’s lifecycle.
Range of application
Widely applicable to high-rise buildings, commercial centers, subways, airports, railway stations, industrial and mining enterprises, drilling platforms, and oil production platforms. Specifically suitable for locations with strict fire-prevention requirements (such as flammable/explosive zones) and harsh environments. Also ideal for power supply and lighting in residential areas, commercial streets, industrial sites, and rural communities.
Technical specifications
Rated capacity (kVA)
Rated voltage
Vector group
No-load loss (W)
Load loss (W)
No-load current (%)
Impedance voltage (%)
HV (kV)
Tapping range (%)
LV (kV)
11#
13#
20#
22#
11/13#
20#
22#
11#
13#
20#
22#
30
6 6.3 6.6 10 10.5 11
±5 or ±2×2.5
0.4
Dyn11 or Yyn0
100
80
70
65
630/600
505/480
455/430
0.3
0.3
0.24
0.23
4
50
130
100
90
80
910/870
730/695
655/625
0.24
0.23
0.24
0.23
80
180
130
115
105
1310/1250
1050/1000
945/900
0.22
0.18
0.21
0.20
100
200
150
135
120
1580/1500
1265/1200
1140/1080
0.21
0.16
0.21
0.20
125
240
170
150
135
1890/1800
1510/1440
1360/1295
0.2
0.15
0.19
0.18
160
280
200
180
160
2310/2200
1850/1760
1665/1585
0.19
0.14
0.18
0.17
200
340
240
215
190
2730/2600
2185/2080
1970/1870
0.18
0.12
017
0.16
250
400
290
260
230
3200/3050
2560/2440
2300/2195
0.16
0.12
0.14
0.13
315
480
340
305
270
3830/3650
3065/2920
2760/2630
0.16
0.11
0.13
0.12
400
570
410
370
330
4520/4300
3615/3440
3250/3095
0.16
0.11
0.13
0.12
500
680
480
430
385
5410/5150
4330/4120
3900/3710
0.16
0.1
0.12
0.11
630
810
570
510
460
6200
4960
4460
0.15
0.09
0.12
0.11
4.5
800
980
700
630
560
7500
6000
5400
0.15
0.09
0.1
0.1
1000
1150
830
745
665
10300
8240
7415
0.14
0.09
0.1
0.09
1250
1360
970
870
780
12000
9600
8640
0.13
0.08
0.1
0.09
1600
1640
1170
1050
940
14500
11600
10440
0.12
0.07
0.09
0.08
2000
1940
1360
1225
1085
18300
14640
13180
0.11
0.09
0.09
0.08
5.5
2500
2290
1600
1440
1280
21200
14840
13360
0.11
0.08
0.09
0.08
3150
2750
2180
24100
0.11
0.08
6
Note:
1. The load loss with two values in the table, the value on the left is applicable to the Dyn11 vector group, and the value on the right is applicable to the Yyn0 vector group.
2. The above data is subject to change due to technical improvement.
